This is a "Made to Order" product that cannot be exchanged and is non-returnable. Please call us at 800-829-9580 for an estimate and to place your order. Due to its total weight, this system does not qualify for free shipping.

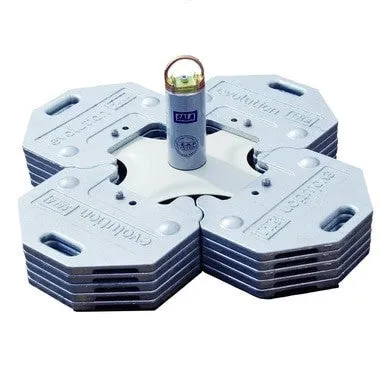

The Rooftop Counterweight Anchor System is designed for use as an anchoring means for a personal fall arrest system (PFAS) for a person working on flat roofs or structures.
Key Features:
- 4 PVC-coated base plates
- 16 plates weighing 45 lbs each
- Base: cast iron
- Counterweights: galvanized cast iron
- L-bolts: steel
- OSHA and ANSI Z359.1 Approved
Manufacturer Recommendations:
- Place the Rooftop Counterweight Anchor System at least 8 ft (2.5 m) away from any edge or opening.
- Personal fall arrest systems must be rigged to limit any free fall to a maximum of 6 ft. (1.8 m)
- Avoid working above your anchorage level since an increased free fall distance will result
- Avoid working where your line may cross or tangle with that of another worker or another object
- Do not allow the lifeline to pass under arms or between legs
- Never clamp, knot or otherwise prevent the lifeline from retracting or being taut, avoid slack line
- Should a fall occur, there must be at least 17 ft of clearance in the fall area to arrest the fall before striking the ground or other objects.
Part Number:
2100185
